PRODUCTS NAME

NIMOevo SPL(Power Measurement for Micro-structure Lens)
Test item
Sphere SEP Cylinder Base Add Diameter of microlens Fill Rate Power Map Power Profile

detectability

Detection capability

1SEC

Detection speed

0.5%

Detection accuracy

0.01D

Repeatability accuracy

GLOBAL PARTNER

DEMO VIDEO

View video
Click on the above blue icon to see the features of product.
Product introduction


With rapid increase of short sighted teenagers,  An increasing number of factories smell business opportunites for micro structure lens for myopia control and start mass production.  However, due to different level quality on the market, there is lack for highly-efficient inspection device for measuring such lens.

For this reason,  NIMOevo SPL is specifically designed by LAMBDA-X for inspection on quality of micro structure lens. It is capable of measuring any kinds of designs on the market.


Function:


Sphere, SEP, Cyldiner, and Addition

Automated detection of each mircolens and output sphere, cyldiner, addition and diameter

Fill Rate Calculation by area and by power

Two apertures( one for measuring power on the base, the other on micro structure area)

High resolution power map and 3D map

Power profile or power distribution

Microlens Power Histogram

Microlens  Diameter Histogram

Automated centering


Capable of measuring all kinds of designs

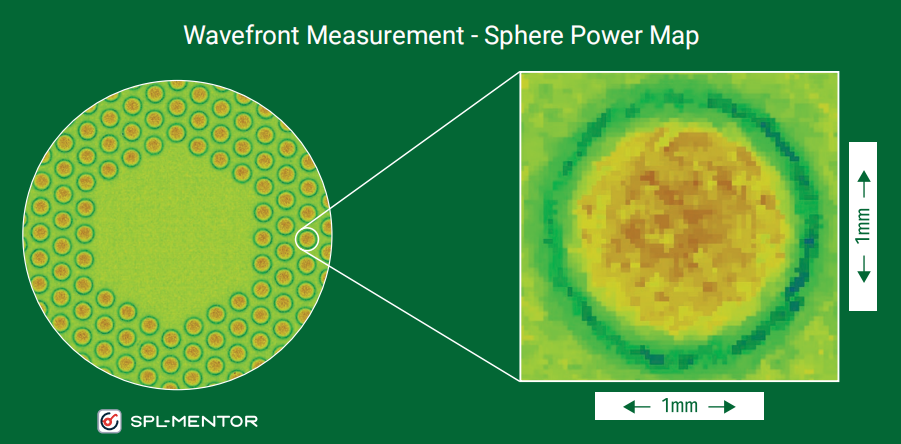

High resolution power map

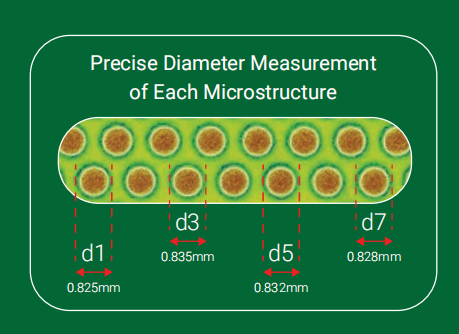

Microlens Diameter for Every Single Microlens





Base and Mircolens area defined by user



（blue ring represents power measurement on base，red ring for measurement on defined mircolens area）


Output of measurement parameters for each microlens



Microlens Power Histogram and Diameter Histogram




Fill Rate Caculation


In user-defined area,  it can obtain sphere power for base (A2) and Addition (A1), hence automatically calculate fill rate


Power distribution in Defined Mircolens Area



Software Interface
  • Product introduction
  • Software interface
