NIMOevo is a cutting-edge metrology instrument that uses advanced wavefront measurement to deliver precise characterization of contact lenses, including multifocal, toric, Ortho-K, and even scleral. Designed for both soft and hard contact lenses, as well as dry and wet measurement

Features：

Suitable for hard and soft contact lens

Capable of measuring any design of lens including sphere,multifocal, asphere, and toric

Automated toric mark detection

Optical center and geometric center can be detected automatically

Dynamic power range: from -30.00D to +30.00D

Wavefront Analysis with Zernike coefficience

Designed for wet and dry measurement

Function:

Power

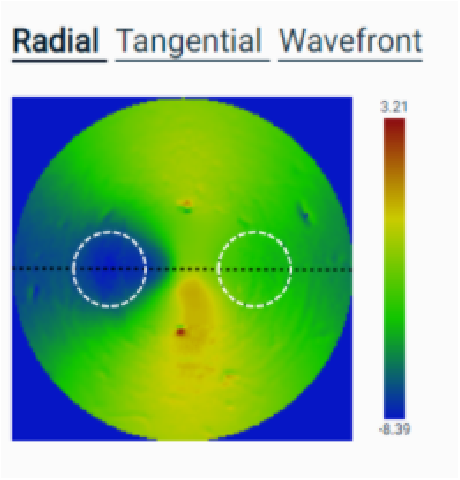

High-resolution wavefront map, Power profile, SEP, Cylinder, Base, Add

Dimension Measurement

Optical center and gemoetric center can be detected automatically

Automated toric mark detection

Second Aperture

The Secondary Apertures plug-in enables precise measurement of multiple areas on the same lens, independently adjustable in size and position. This capability is particularly valuable for segmented lenses and decentered optics, ensuring comprehensive analysis tailored to advanced lens designs

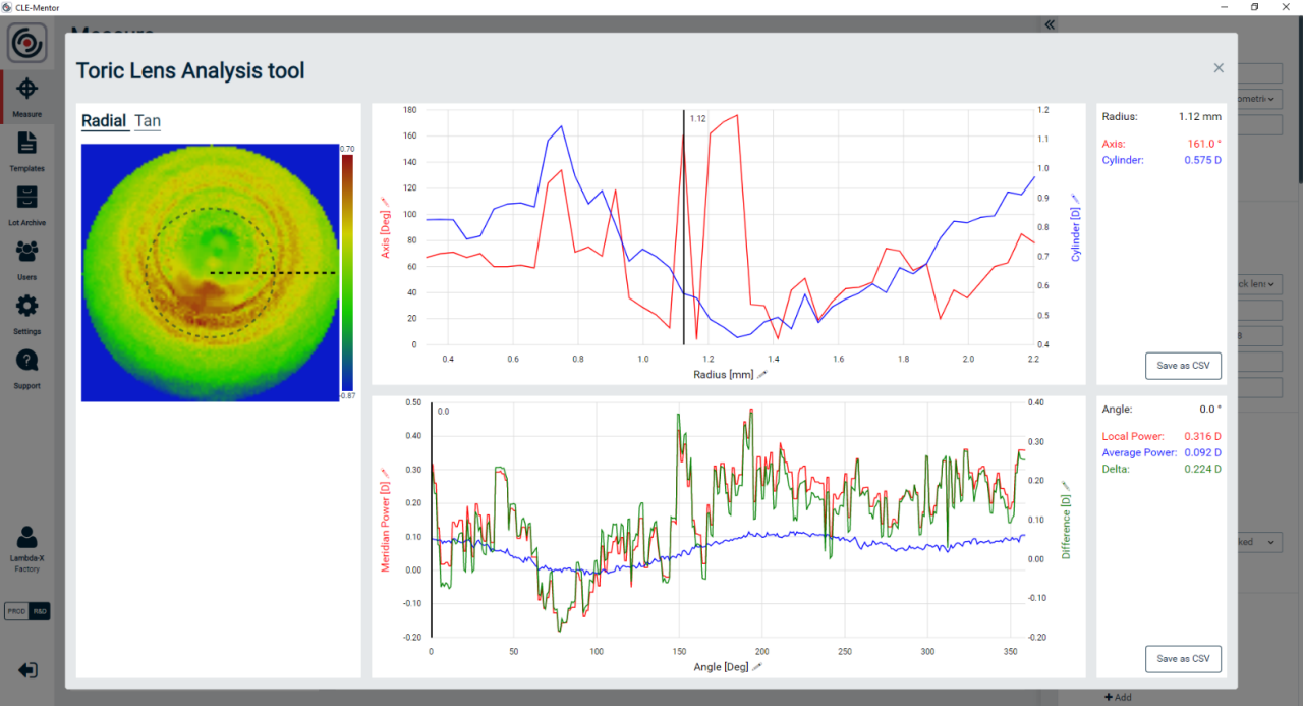

Toric Lens Analysis

 Multifocal contact lens measurement

Real Case:  Ortho-K lens measurement

MTF Analyzer Service (Optional)

MTF Analysis

Wavefront Data

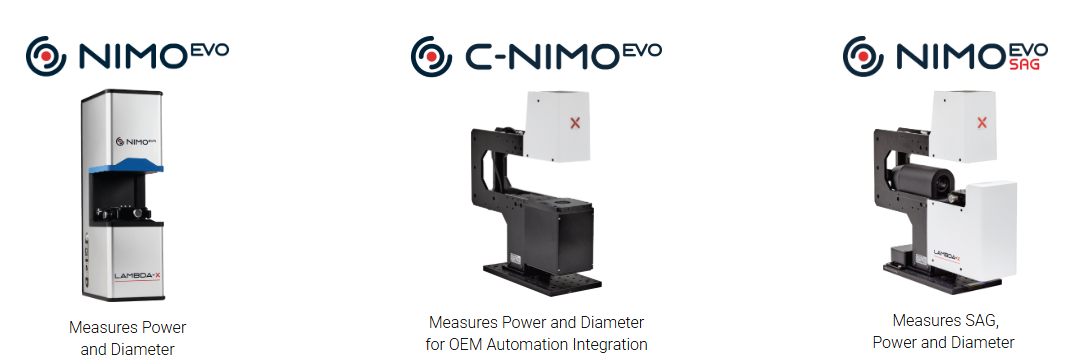

NIMOevo Family for Contact Lens
