PRODUCTS NAME

人工晶状体压缩力测试仪
Test item
人工晶体 襻动态疲劳测试

detectability

Detection capability

1SEC

Detection speed

Detection accuracy

Repeatability accuracy

GLOBAL PARTNER

DEMO VIDEO

View video
This video will show you how to operate the product in detail, not to miss every detail. Let you easily grasp all the points during the viewing process.
Product introduction

人工晶状体动态疲劳测试仪是专用于测试人工晶状体襻的耐久性的仪器，可以测试襻在经历了 250,000 次振动后是否断裂，完全符合 ISO11979-3 要求。


产品特点:

  • 符合 ISO11979-3 标准

  • 电动式恒温水槽，提供溶液测量环境

  • 标配 10mm，11mm 标准钢片，夹紧零位可精准复位

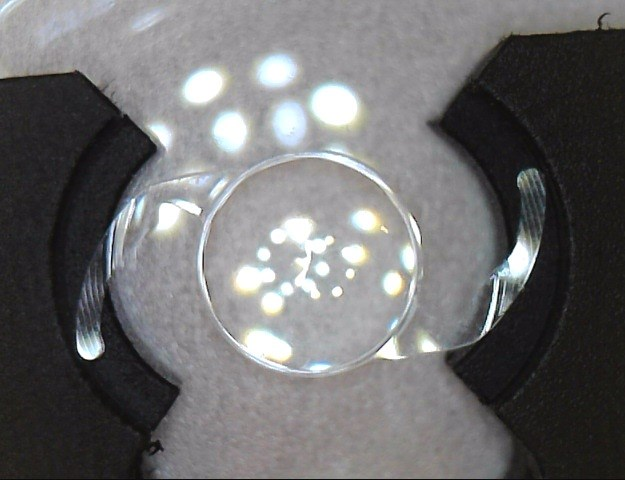

  • 可选配摄像系统实时监控晶体的压缩情况


装置:

表面半径 5.00mm 或 5.50mm(精度在 0.02mm以内)两个测座，为使襻的转动阻力减至最小程度，应使用低摩擦材料

测量压力仪表的准确至 0.01mN


步骤:

1. 水平放置，免除重力的影响

2. 调节测座与人工晶体总直径相等，将人工晶体置入

3. 使人工晶体处于无压缩的状态，以便压力线等分接触角

4. 将测座靠拢至设定直径













Software Interface
  • Product introduction
  • Software interface
Send your lens , and we will do the test for you
Sample test
Recommended product
Leave a message now to get product information

(First step)

Sample testing process

01Learn about your sample information
Fill in the sample test request form and submit it
02Send your sample
After submitting the form, you will receive detailed shipping instructions
03Testing completed
You will receive a detailed sample test report
