PRODUCTS NAME

人工晶状体动态疲劳测试仪
Test item
人工晶体 襻压缩力测试

detectability

Detection capability

1SEC

Detection speed

Detection accuracy

Repeatability accuracy

GLOBAL PARTNER

DEMO VIDEO

View video
This video will show you how to operate the product in detail, not to miss every detail. Let you easily grasp all the points during the viewing process.
Product introduction

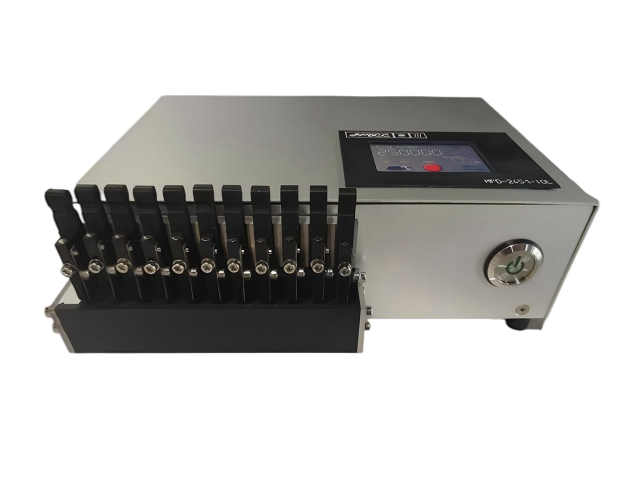

人工晶状体动态疲劳测试仪是专用于测试人工晶状体襻的耐久性的仪器，可以测试襻在经历了 250,000 次振动后是否断裂。完全符合 ISO11979-3 要求。

产品特点

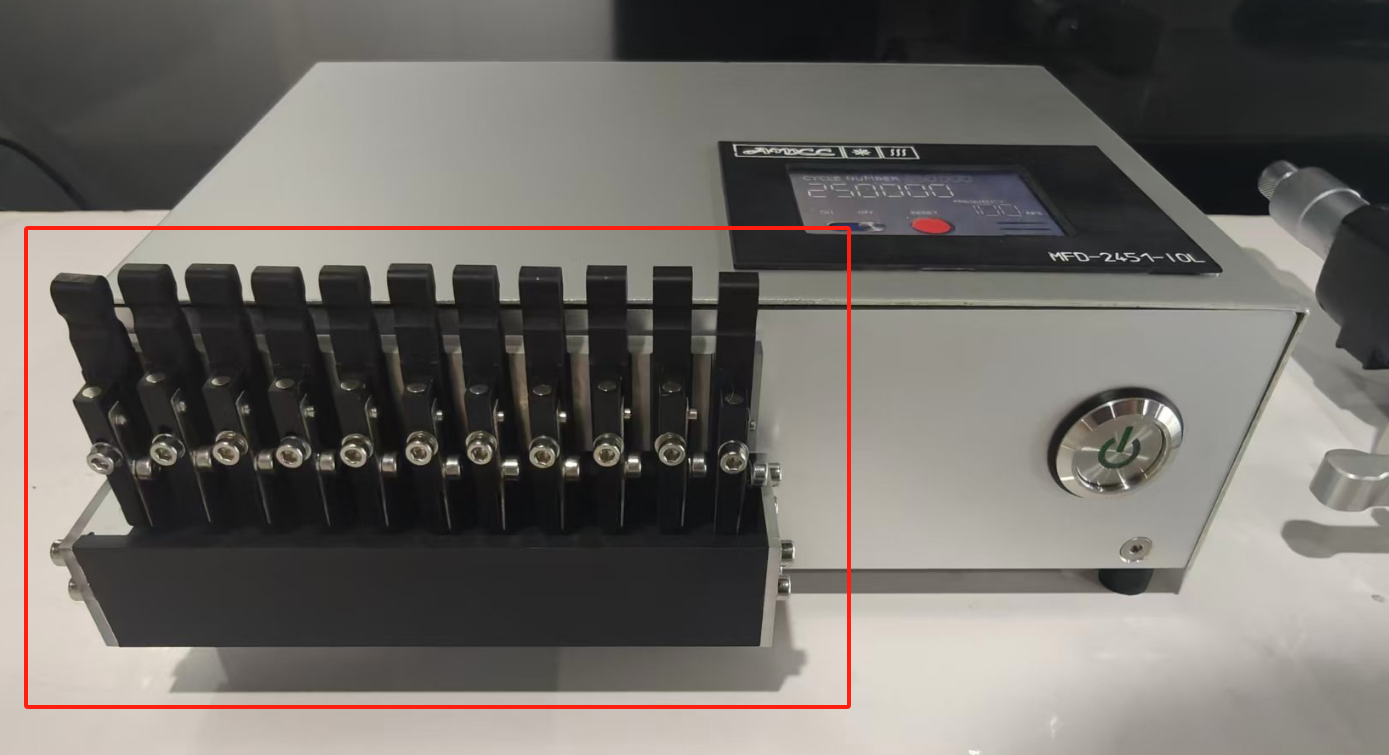

  • 一次可同时测量 11 片人工晶体

  • image.png

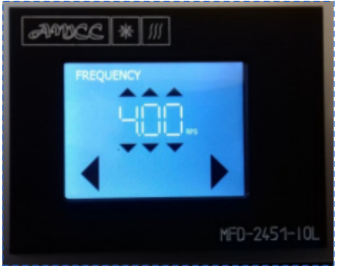

  • 可按照不同材料的晶体设定不同的振动频率

  • image.png

  • 可脱卸式夹具让安装晶体更方便


  • image.png

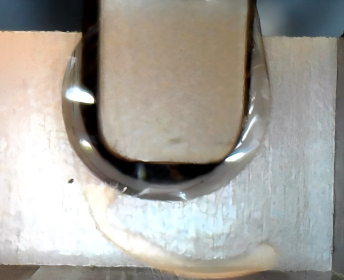

  • 配备实时摄像系统，了解晶体状态

  • 图片3.png


  • 压缩尺寸调整旋钮可将人工晶状体压缩到相应尺寸，保证压缩线等分接触角

    配备高精度计数器确保不漏步

测试步骤

  1. 将人工晶状体安装到夹具

  2. 调节最低零位

  3. 通过旋钮将晶状体调整到压缩尺寸

  4. 根据镜片材料适当调整振动频率

  5. 启动 250,000 次振动

  6. 定期检查襻是否断裂
